Compose file syntax reference

Introduced in v1.13.0

ZaneOps accepts standard Docker Compose files with a few extensions and restrictions described below.

File structure

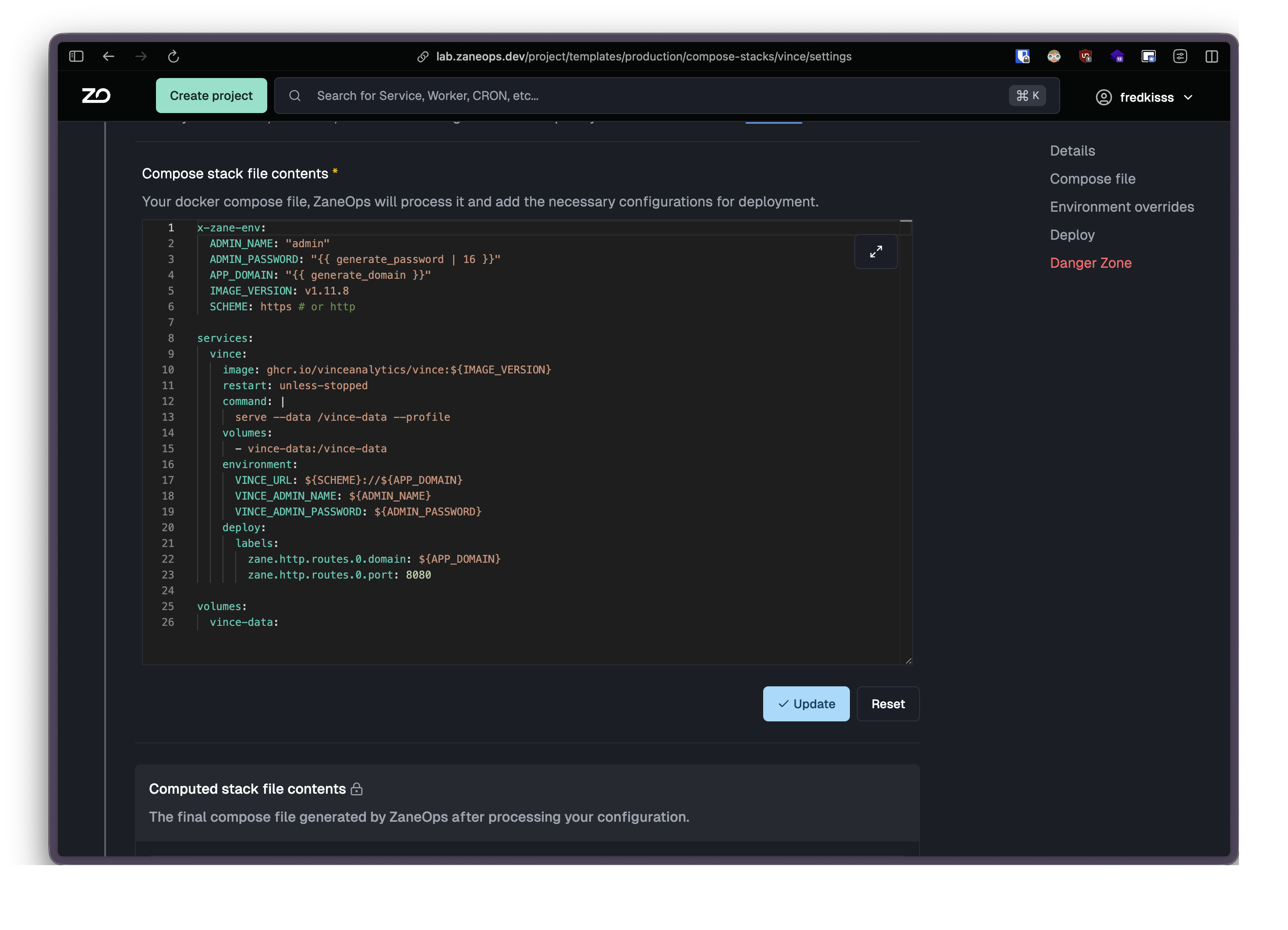

Any valid compose file with at least one services entry works. The ZaneOps-specific additions are all optional except when you need routing or generated secrets.

docker-compose.yml

# ZaneOps-specific: template expressions for generating values at deploy time
x-zane-env:
  VAR_NAME: "{{ template_expression }}"

# Standard services
services:
  service_name:
    image: image:tag
    environment:
      KEY: ${VALUE}        # references an x-zane-env variable
    deploy:
      labels:
        # ZaneOps-specific: label-based routing instead of ports
        zane.http.routes.0.domain: "example.com"
        zane.http.routes.0.port: "8080"

# Standard named volumes
volumes:
  data:

# Inline config files (standard content key, ZaneOps adds ${VAR} interpolation and auto-versioning)
configs:
  my_config:
    content: |
      server { listen 80; }

How ZaneOps processes your file

Before deploying, ZaneOps transforms the compose file through these steps:

1. Template processing: x-zane-env expressions evaluated, ${VAR} references expanded
2. Service name hashing: all service names prefixed with the stack’s hash (e.g. app → abc123_app) to prevent DNS collisions across stacks
3. Network injection: three networks attached to every service automatically (see Networks)
4. Config versioning: inline configs created as versioned Docker configs (my_config_v1, my_config_v2, …)

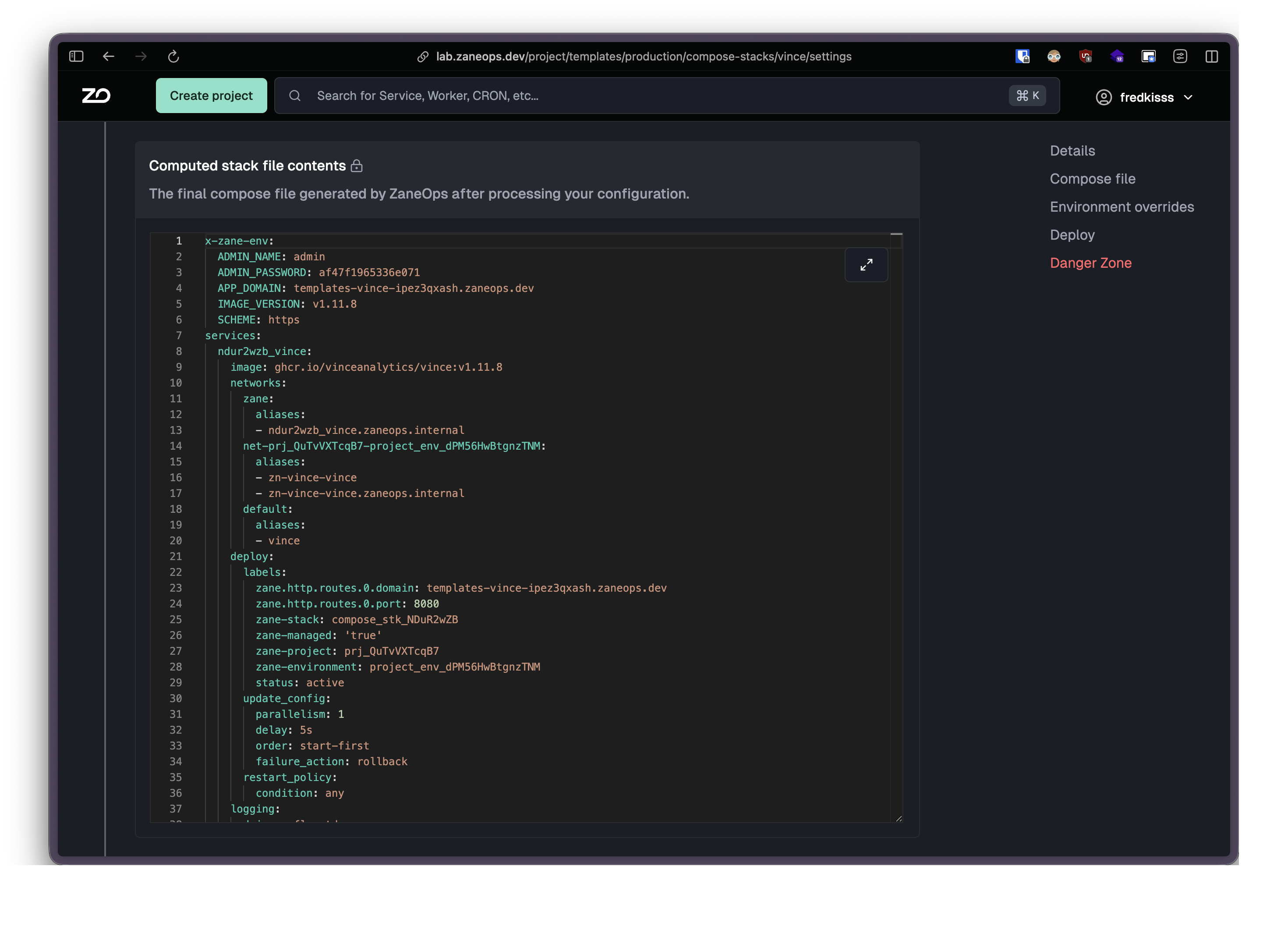

5. Computed file: the fully processed compose file (with all variables resolved, service names hashed, and networks injected) is saved and visible in the ZaneOps UI so you can inspect exactly what gets deployed
6. Stack deployment: docker stack deploy --with-registry-auth is executed using the computed compose file

---

x-zane-env

x-zane-env is a ZaneOps-specific top-level key that replaces the role of a .env file. It lets you define stack-wide variables (either plain values or template expressions) that are then referenced throughout the rest of the compose file.

docker-compose.yml

x-zane-env:
  # Plain value (behaves like a .env file entry)
  APP_PORT: "3000"

  # Template expression (generates a value at deploy time)
  DB_PASSWORD: "{{ generate_password | 32 }}"

All variables are referenced with ${VAR_NAME} syntax (curly braces required). Variables referenced without curly braces ($VAR_NAME) are left as-is and not expanded. Referencing an undefined variable with ${VAR_NAME} expands to an empty string.

docker-compose.yml

x-zane-env:
  DB_PASSWORD: "{{ generate_password | 32 }}"

services:
  app:
    environment:
      PASSWORD: ${DB_PASSWORD}   # ✅ expanded to the generated value
      RAW: $DB_PASSWORD          # ❌ not expanded, kept literally as "$DB_PASSWORD"
      MISSING: ${UNDEFINED_VAR}  # ⚠️ expanded to an empty string

template expressions outside of `x-zane-env`

Template expressions only work inside x-zane-env. Writing {{ generate_password | 32 }} directly in a service environment will not be evaluated.

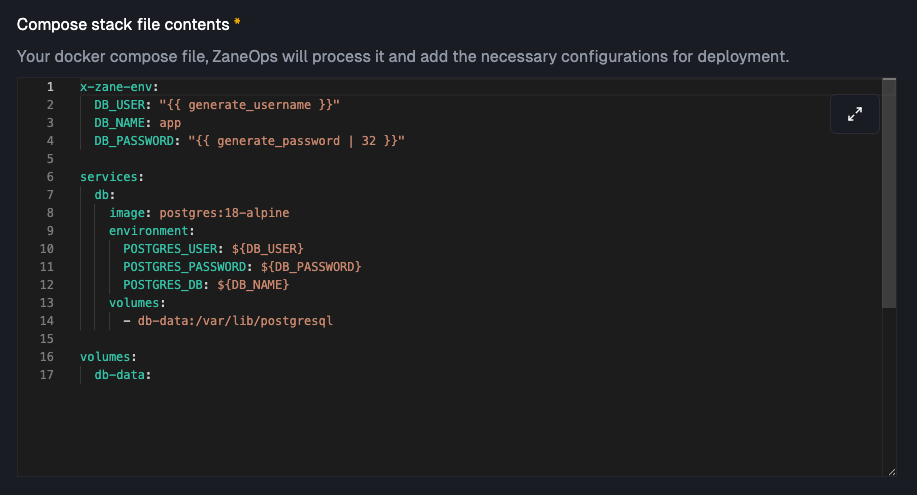

• Values from template expressions are evaluated once on the first deployment and then persisted. A generated password won’t change on subsequent deploys.

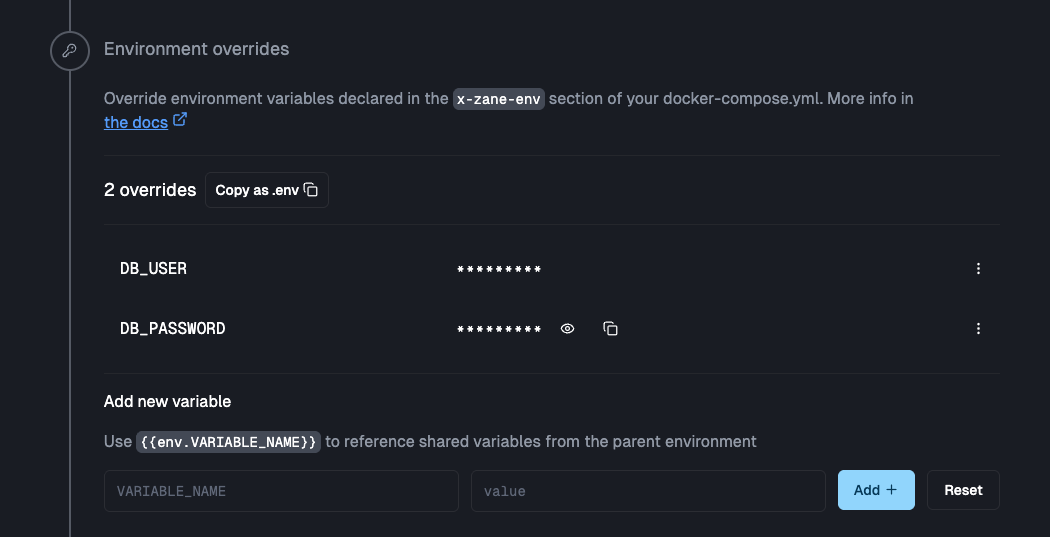

• The variables are persisted as environment overrides:

Available template functions

generate_username

Generates a random username in the format {adjective}{animal}{number}.

docker-compose.yml

x-zane-env:
  DB_USER: "{{ generate_username }}"
# Output example: reddog65, bluecat42

---

generate_password | <length>

Generates a cryptographically secure random password as a hexadecimal string. Length must be an even number ≥ 8.

docker-compose.yml

x-zane-env:
  DB_PASSWORD: "{{ generate_password | 32 }}"
  API_SECRET: "{{ generate_password | 64 }}"

docker-compose.yml

# ❌ Wrong: odd length
PASSWORD: "{{ generate_password | 31 }}"

# ✅ Correct
PASSWORD: "{{ generate_password | 32 }}"

---

generate_base64 | <bytes>

Generates a base64-encoded random string of N bytes. Minimum value is 8.

docker-compose.yml

x-zane-env:
  ENCRYPTION_KEY: "{{ generate_base64 | 32 }}"
  SESSION_SECRET: "{{ generate_base64 | 64 }}"

---

generate_slug

Generates a URL-friendly slug in the format {adjective}-{noun}-{number}.

docker-compose.yml

x-zane-env:
  DB_NAME: "{{ generate_slug }}"
# Output example: happy-tree-91

---

generate_domain

Generates a unique domain scoped to your stack: {project_slug}-{stack_slug}-{random}.{ROOT_DOMAIN}.

docker-compose.yml

x-zane-env:
  APP_URL: "{{ generate_domain }}"
  CALLBACK_URL: "https://{{ generate_domain }}/auth/callback"
# Output example: my-app-backend-a1b2c3.zaneops.dev

---

generate_uuid

Generates a UUID v4.

docker-compose.yml

x-zane-env:
  INSTALLATION_ID: "{{ generate_uuid }}"

---

generate_email

Generates a fake but valid-looking email address.

docker-compose.yml

x-zane-env:
  ADMIN_EMAIL: "{{ generate_email }}"

---

network_alias | 'service_name'

Generates a stable, environment-scoped hostname. Use this when you need to reference a service in this stack from another service or stack in the same environment.

Format: {network_alias_prefix}-{service_name}

docker-compose.yml

x-zane-env:
  DB_HOST: "{{ network_alias | 'postgres' }}"
  REDIS_URL: "redis://{{ network_alias | 'redis' }}:6379"
# Output example: my-stack-postgres

The alias is stable across redeployments and scoped to the environment, so services in the same environment share the same alias space.

---

global_alias | 'service_name'

Generates a globally unique hostname, accessible across all projects and environments.

Format: {hash_prefix}_{service_name}

docker-compose.yml

x-zane-env:
  GLOBAL_DB: "{{ global_alias | 'postgres' }}"
# Output example: abc123_postgres

Use this only for cross-project or cross-environment communication. Use network_alias to connect in the same environment and use the service name directly to reference it in the stack.

---

Variable composition

Variables in x-zane-env can reference each other using ${VAR} syntax to build composite values:

docker-compose.yml

x-zane-env:
  DB_USER: "{{ generate_username }}"
  DB_PASSWORD: "{{ generate_password | 32 }}"
  DB_NAME: "{{ generate_slug }}"
  DB_HOST: "{{ network_alias | 'postgres' }}"

  DATABASE_URL: "postgresql://${DB_USER}:${DB_PASSWORD}@${DB_HOST}:5432/${DB_NAME}"

services:
  app:
    image: myapp:latest
    environment:
      DATABASE_URL: ${DATABASE_URL}

Exposed variables (__ prefix)

Variables whose name starts with __ are surfaced as environment overrides in the ZaneOps UI. This makes their resolved value visible and copyable, so it can easily be used by services outside the stack.

A typical use case is generating a connection URL for a database stack and exposing it so an external service (a git app, another stack) can reference it without having to reconstruct it manually.

docker-compose.yml

x-zane-env:
  DB_USER: "{{ generate_username }}"
  DB_PASSWORD: "{{ generate_password | 32 }}"
  DB_HOST: "{{ network_alias | 'postgres' }}"
  DB_NAME: "{{ generate_slug }}"

  # Exposed in the UI as an environment override
  __DATABASE_URL: "postgres://${DB_USER}:${DB_PASSWORD}@${DB_HOST}:5432/${DB_NAME}"

The __DATABASE_URL variable won’t be injected into any service automatically. It exists purely to surface the resolved value in the UI so you can copy it into another service’s environment variables.

Note

The __ prefix is part of the variable name. If you do reference it inside the stack, use ${__DATABASE_URL} (double underscore included).

---

Routing

ZaneOps uses label-based routing instead of port mappings. There is no concept of published ports; traffic is routed through ZaneOps’ reverse proxy based on deploy.labels.

Route labels

docker-compose.yml

services:
  web:
    image: nginx:alpine
    deploy:
      labels:
        zane.http.routes.0.domain: "example.com"
        zane.http.routes.0.port: "80"
        zane.http.routes.0.base_path: "/"
        zane.http.routes.0.strip_prefix: "false"

Label	Required	Description
zane.http.routes.{N}.domain	✅	Domain name to match
zane.http.routes.{N}.port	✅	Container port to forward traffic to
zane.http.routes.{N}.base_path	No	Path prefix (default: /)
zane.http.routes.{N}.strip_prefix	No	Strip base_path before forwarding (default: true)

{N} is a zero-based sequential index. Add more routes by incrementing the index:

docker-compose.yml

deploy:
  labels:
    zane.http.routes.0.domain: "example.com"
    zane.http.routes.0.port: "8080"

    zane.http.routes.1.domain: "www.example.com"
    zane.http.routes.1.port: "8080"

    zane.http.routes.2.domain: "api.example.com"
    zane.http.routes.2.port: "3000"
    zane.http.routes.2.base_path: "/api"
    zane.http.routes.2.strip_prefix: "true"

Route domains can reference x-zane-env variables:

docker-compose.yml

x-zane-env:
  APP_DOMAIN: "{{ generate_domain }}"

services:
  web:
    deploy:
      labels:
        zane.http.routes.0.domain: "${APP_DOMAIN}"
        zane.http.routes.0.port: "8080"

---

Unsupported properties

The following standard Docker Compose properties are silently stripped before deployment:

Property	Reason
expose	Not meaningful in Swarm mode
restart	Use deploy.restart_policy instead
build	ZaneOps requires pre-built images
container_name	Not meaningful in Swarm mode

ports

ports is not stripped and will work, but it is strongly recommended to use routing labels instead. Routing labels integrate with ZaneOps’ reverse proxy to handle TLS termination, domain routing, and path-based routing automatically. Publishing raw ports bypasses all of that.

docker-compose.yml

# ✅ Recommended: routing labels
services:
  web:
    image: myapp:latest
    deploy:
      labels:
        zane.http.routes.0.domain: "myapp.com"
        zane.http.routes.0.port: "8080"

# ⚠️ Works, but gives up ZaneOps routing features
services:
  web:
    image: myapp:latest
    ports:
      - "8080:8080"

---

Pausing a service

Setting deploy.replicas to 0 pauses a service without removing it from the stack. Its status in ZaneOps becomes SLEEPING. Set it back to any positive number to resume.

docker-compose.yml

services:
  worker:
    image: myapp/worker:latest
    deploy:
      replicas: 0  # paused; change to 1 or more to resume

This is useful for temporarily disabling background workers or non-critical services without tearing down the entire stack.

---

Volumes

Relative path bind mounts are not supported and will fail validation:

docker-compose.yml

# ❌ Will fail
volumes:
  - ./config:/etc/app/config
  - ../data:/app/data

Use inline configs for configuration files, or absolute paths for host directories:

docker-compose.yml

# ✅ Inline config
services:
  web:
    configs:
      - source: app_config
        target: /etc/app/config.json

configs:
  app_config:
    content: |
      { "key": "value" }

# ✅ Absolute path
services:
  portainer:
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro

---

Docker configs

ZaneOps supports inline configs using the standard content key. What ZaneOps adds on top is ${VAR} interpolation inside config content and automatic versioning on redeploy.

docker-compose.yml

services:
  web:
    image: nginx:alpine
    configs:
      - source: nginx_config
        target: /etc/nginx/nginx.conf

configs:
  nginx_config:
    content: |
      server {
        listen 80;
      }

Config content supports ${VAR} interpolation from x-zane-env:

docker-compose.yml

x-zane-env:
  DB_HOST: "{{ network_alias | 'postgres' }}"

configs:
  app_config:
    content: |
      { "db_host": "${DB_HOST}" }

A common use case is shipping database initialization scripts:

docker-compose.yml

# docker-compose.yml
services:
  postgres:
    image: postgres:16
    configs:
      - source: init_sql
        target: /docker-entrypoint-initdb.d/init.sql

configs:
  init_sql:
    content: |
      CREATE EXTENSION IF NOT EXISTS "uuid-ossp";
      CREATE TABLE users (
        id UUID PRIMARY KEY DEFAULT uuid_generate_v4(),
        email TEXT UNIQUE NOT NULL
      );

Automatic versioning

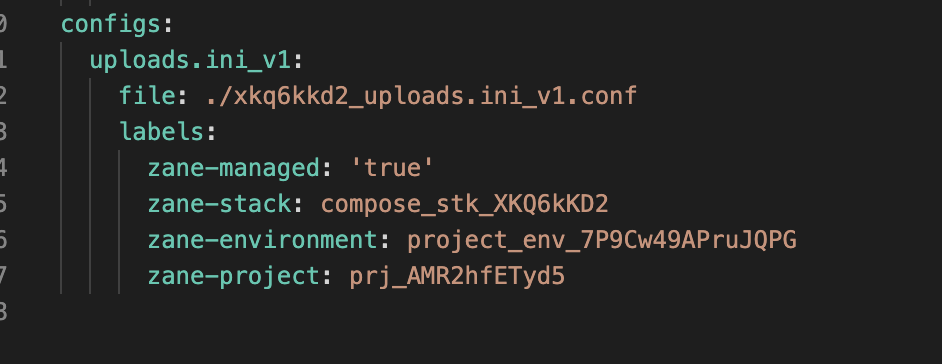

Docker configs are immutable, so ZaneOps appends a version suffix to every config name and manages the lifecycle automatically.

Deployment	content changed?	Config name used	Old config
1st deploy	—	nginx_config_v1	—
2nd deploy	No	nginx_config_v1 (reused)	unchanged
3rd deploy	Yes	nginx_config_v2 (new)	not used anymore

Version increment

The version is only incremented when the content actually changes. Redeploying with identical config content reuses the existing version and no new config is created.

---

Networks

Automatic network injection

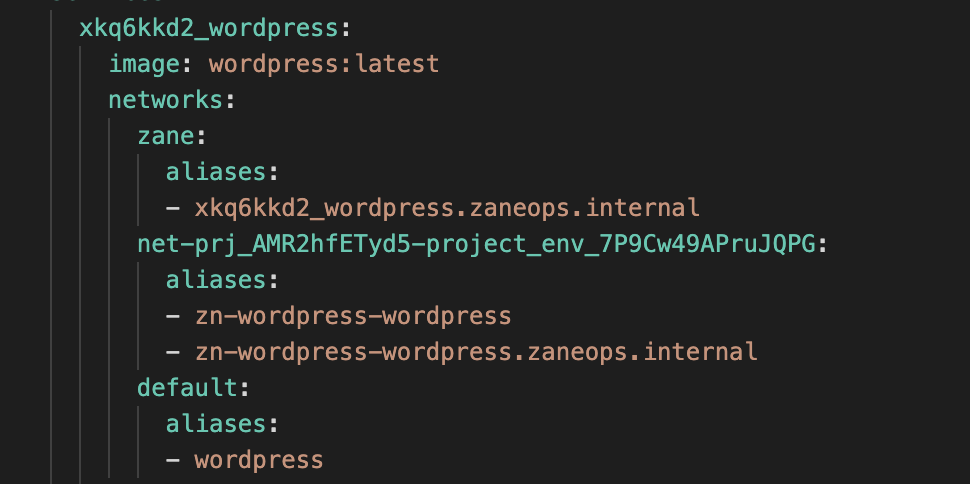

You don’t need to declare networks for basic service communication. ZaneOps automatically attaches every service to three networks:

Network	Scope	Purpose
zane (global overlay)	All ZaneOps services	Proxy and ZaneOps-internal communication
Environment network (zn-env-*)	Same environment	Services in the same env can talk to each other
Stack default network	Same stack	Services within the stack use their original names as hostnames

Service name hashing

ZaneOps prefixes all service names with a stack-specific hash to prevent DNS collisions across stacks:

# In your compose file:    app, postgres
# Deployed as:             abc123_app, abc123_postgres

Because of this, do not hardcode hashed names as hostnames. Use one of these instead:

• Original service name: works within the stack’s default network:

  docker-compose.yml

  environment:
    DB_HOST: postgres  # resolves in the stack default network

• network_alias: works across services in the same environment:

  docker-compose.yml

  x-zane-env:
    DB_HOST: "{{ network_alias | 'postgres' }}"  # e.g. my-stack-postgres

• global_alias: for cross-stack or cross-environment references:

  docker-compose.yml

  x-zane-env:
    DB_HOST: "{{ global_alias | 'postgres' }}"  # e.g. abc123_postgres

---

depends_on

ZaneOps converts the dict form of depends_on to a list for Docker Swarm compatibility:

docker-compose.yml

# ❌ Dict form: converted automatically
depends_on:
  postgres:
    condition: service_healthy

# ✅ Equivalent after conversion
depends_on:
  - postgres

The condition field is dropped. depends_on controls startup ordering only; it does not wait for a service to become healthy or ready.

---

Troubleshooting

Template expression not evaluated

Template expressions only work inside x-zane-env:

docker-compose.yml

# ❌ Not evaluated
services:
  app:
    environment:
      PASSWORD: "{{ generate_password | 32 }}"

# ✅ Correct
x-zane-env:
  PASSWORD: "{{ generate_password | 32 }}"

services:
  app:
    environment:
      PASSWORD: ${PASSWORD}

Unexpected empty value

${VAR} references are always expanded. If the variable is not declared in x-zane-env, it expands to an empty string rather than keeping the literal ${VAR} text. Make sure every variable you reference is defined.

Service can’t connect to another service

Don’t use the hashed service name (abc123_postgres) as a hostname; it’s an implementation detail. Use the original service name (works in the stack default network) or network_alias (works across the environment):

docker-compose.yml

x-zane-env:
  DB_HOST: "{{ network_alias | 'postgres' }}"

Route validation failed

Both domain and port are required per route. strip_prefix must be "true" or "false" (not "yes"/"no").

Config not updated after redeployment

ZaneOps only creates a new config version when the content changes. If the content is identical to the previous deployment, the existing version is reused. This is expected behavior.

generate_password invalid length error

Length must be an even number ≥ 8 (e.g. 8, 10, 12, 16, 32, 64).

---

Complete example

PostgreSQL stack using generated credentials, a network alias, and an exposed connection URL:

docker-compose.yml

version: "3.8"
x-zane-env:
  # Generated once on first deploy and persisted
  POSTGRES_PASSWORD: "{{ generate_password | 32 }}"
  POSTGRES_USER: "{{ generate_slug }}"
  POSTGRES_DB: "{{ generate_slug }}"

  POSTGRES_VERSION: "18-alpine"

  # Stable hostname for other services in the same environment to connect to
  DB_HOST_ENV_NAME: "{{ network_alias | 'postgres' }}"

  # Exposed in the UI so external services can copy the full connection string
  __DATABASE_URL: "postgres://${POSTGRES_USER}:${POSTGRES_PASSWORD}@${DB_HOST_ENV_NAME}:5432/${POSTGRES_DB}?schema=public"

services:
  postgres:
    image: docker.io/library/postgres:${POSTGRES_VERSION:-18-alpine}
    restart: unless-stopped
    healthcheck:
      # $$ escapes the $ so it's passed literally to the shell instead of being expanded by ZaneOps
      test: ["CMD-SHELL", "pg_isready -d $$POSTGRES_DB -U $$POSTGRES_USER"]
      start_period: 20s
      interval: 30s
      retries: 5
      timeout: 5s
    volumes:
      - database:/var/lib/postgresql
    environment:
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_DB: ${POSTGRES_DB}
volumes:
  database:
    driver: local
